Brightness Opacity & Amp Color Tester (Techni Brite Type )

Name: Brightness Opacity & Amp Color Tester (Techni Brite Type )
Brand: LAB XPERT INDIA
Price: 250000.0 INR
Availability: InStock

Price 250000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Brightness Opacity & Amp Color Tester (Techni Brite Type ) Specification

Power Supply
230V Single Phase AC

Control Type
Microprocessor based

Display Type
Digital LCD Display

Temperature Resistance
Ambient temperature operation

Features
Measures brightness, opacity, gloss, color, yellowness, whiteness; with filter selector for B, G, W; microprocessor controlled; key pad input; instant digital reading

Accuracy
High precision electronic measurement

Shape
Bench top rectangular design

Type
Other

Dimension (L*W*H)
Approx. 420 x 330 x 380 mm

Weight
22 Kilograms (kg)

Equipment Type
Digital Reflectance Meter

Equipment Materials
Mild Steel and Stainless Steel (Powder Coated)

Power
Electronic AC input

Voltage
230V AC, 50Hz

Material
Metal & High grade plastic components

Application
Paper and Paperboard Testing Pulp Industry Printing & Packaging Industry

Warranty
1 year

Lamp Type
Sensor specific filtered lamp for accurate reading

Operating Humidity
Up to 85% RH (non-condensing)

Weight
Approx. 14 kg

Compliance
ISO and TAPPI Standards

Data Output
RS232 serial port

Ambient Light Protection
Closed compartment to avoid stray light

Sample Size
50 x 50 mm up to A4 sheets

Calibration
Standard white calibration reference supplied

Measurement Range
Up to 100% Reflectance

Safety
Inbuilt electrical safety circuit

Finish
Industrial grade powder coating for corrosion resistance

Measurement Mode
Single/Continuous/Statistical analysis

Brightness Opacity & Amp Color Tester (Techni Brite Type ) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Days

Brightness Opacity & Amp Color Tester (Techni Brite Type ) About

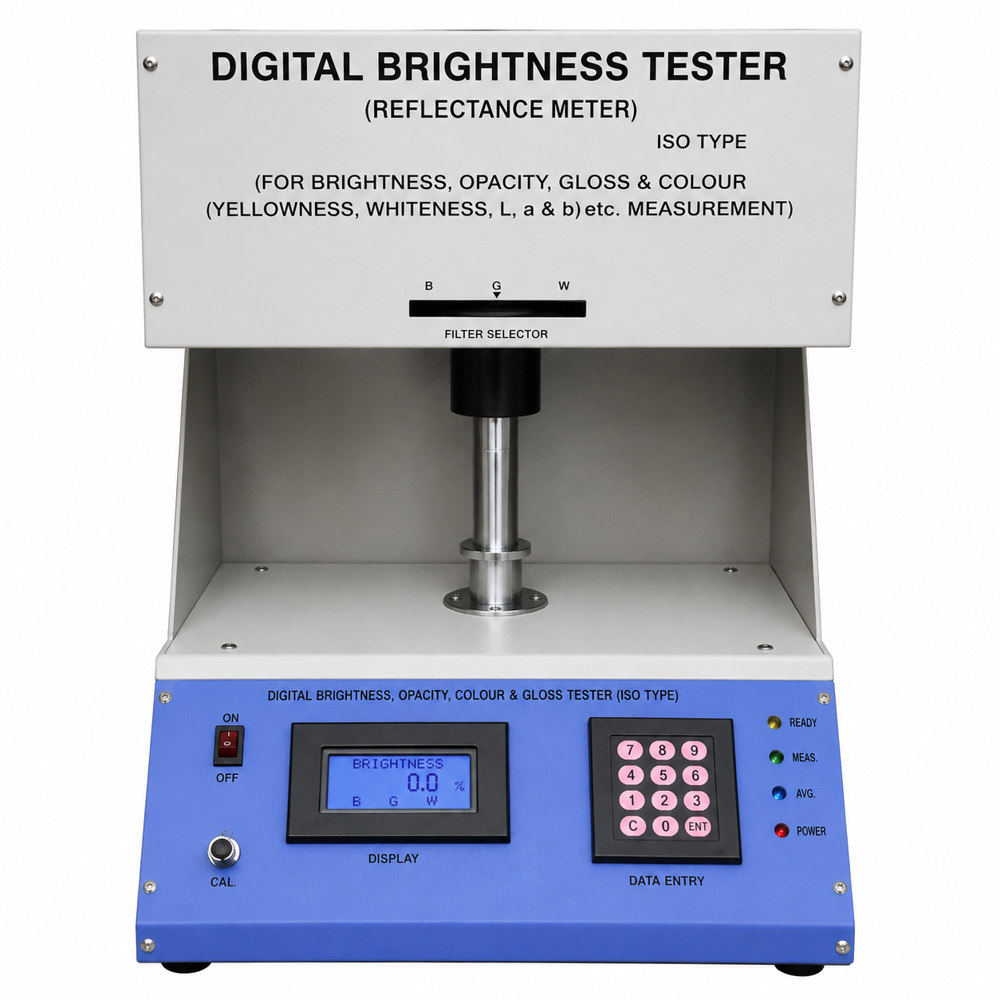

Brightness, Opacity & Color Tester measures Brightness, Opacity and other parameters by diffused reflectance according to relevant ISO standards. It gives out instantaneous digital read out, which shows yellowness, whiteness and colors values of pulp, paper, paperboard, coating agents, filler and other similar materials according to international standards.

Advanced Optical Measurement

Achieve high-precision analysis for brightness, opacity, gloss, color, yellowness, and whiteness with the Techni Brite Type Tester. Its microprocessor-controlled operation and sensor-specific filtered lamp ensure consistent, reliable readings, suitable for even the strictest quality control environments.

Robust Design for Industrial Use

Built from powder-coated mild steel and stainless steel, this instrument withstands challenging industrial conditions. Its closed compartment design protects measurements from ambient light interference, while the compact, bench-top rectangular shape makes it adaptable for varied laboratory settings.

FAQ's of Brightness Opacity & Amp Color Tester (Techni Brite Type ):

Q: How does the Brightness Opacity & Amp Color Tester measure reflectance and color properties?

A: The tester uses a sensor-specific filtered lamp and advanced microprocessor control to evaluate reflectance up to 100%. It can measure brightness, opacity, gloss, color, yellowness, and whiteness in accordance with ISO and TAPPI standards, ensuring highly accurate digital readings for each parameter.

Q: What types and sizes of samples can be tested with this equipment?

A: The instrument accommodates sample sizes from 50 x 50 mm up to A4 sheets, making it suitable for various paper, paperboard, and printed material applications in laboratories and production lines.

Q: When is calibration necessary, and how is it performed?

A: Calibration should be conducted regularly or before critical tests, using the supplied standard white calibration reference. This ensures measurement integrity and continued compliance with industry standards.

Q: Where is the best environment to operate this device?

A: Operate the tester in an ambient temperature space with humidity levels up to 85% RH (non-condensing). Its closed compartment design shields measurements from stray light, and robust construction protects it in industrial lab environments.

Q: What is the process for data output and analysis?

A: Measurement data can be directly output via the RS232 serial port for further analysis or integration with lab information systems. Statistical analysis modes allow for batch testing and instant result calculation displayed on the digital LCD.

Q: What benefits does using this digital reflectance meter bring to the paper and packaging industries?

A: This tester ensures precise quality control by providing reliable, instant digital measurements of critical optical properties. It enhances production efficiency, compliance, and product consistency, vital for the pulp, paper, printing, and packaging sectors.
